發布時間: 2012-11-13 11:11
正文摘要:本帖最后由 claudy 于 2012-11-13 11:13 編輯 m3 t7 [$ }, n% R. P, l, _ , \9 n2 r5 i j, n7 l5 W 為什么我設置好了plotctrls-numbering 并試過plot-multi-plots都不能顯示直線和關鍵點的 ... |
eddyzhang 發表于 2012-11-14 16:27 謝謝你的熱心回答{:soso_e100:} |
| 同樣的程序，不同電腦運行，結果不同，估計就是你電腦軟件的配置問題了。你試著從新安裝一下ansys或修復一下看看吧 |

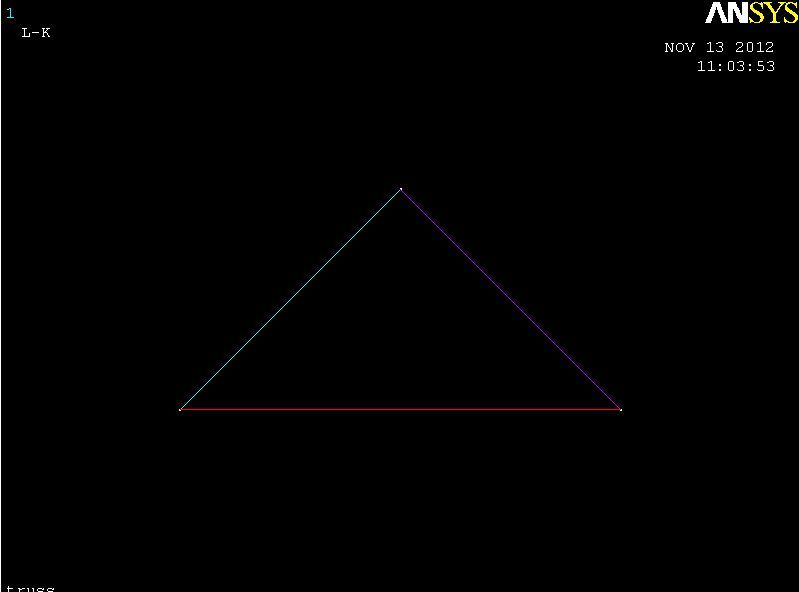

eddyzhang 發表于 2012-11-14 12:20 是的，不知道你發現沒，上面圖片的左上方有K-L的標識，應該就是代表打開了關鍵點和直線的編號吧，但是實際上又沒有，看不到編號，畫圖很難選到需要的元素 |
| 很奇怪，我將你的命令流運行后，都能顯示。 |
claudy 發表于 2012-11-13 15:12 /BATCH - Q# f1 w# G7 B3 r$ @ /COM,ANSYS RELEASE 12.1 UP20091102 10:58:30 11/13/2012 /TITLE,truss /REPLOT 6 S9 b: G6 J* }& `* c !* % P3 v4 a7 X$ ~- i/ z /NOPR 5 }% }+ A& G! E( A4 O /PMETH,OFF,0* g1 S- ?/ Z- \) a, h1 Y" P KEYW,PR_SET,1 a* h( H% p2 M2 r# @ KEYW,PR_STRUC,1 KEYW,PR_THERM,0 KEYW,PR_FLUID,0 KEYW,PR_ELMAG,0 KEYW,MAGNOD,0 & \& h9 O0 Q( d) C, y KEYW,MAGEDG,0 : U- F, n/ i: X KEYW,MAGHFE,0 5 N5 ^4 V+ O5 p/ R KEYW,MAGELC,0 KEYW,PR_MULTI,0 KEYW,PR_CFD,0 /GO . f" f9 @: h6 {. z! W !* /COM, /COM,Preferences for GUI filtering have been set to display: /COM, Structural ! A6 o2 {- n& y. f& S) Z8 n& y% n, L !* - J6 ?- p8 s+ t2 v( ^ /PLOPTS,INFO,3 /PLOPTS,LEG1,1 /PLOPTS,LEG2,1 ! l- J1 ?, |, }" G; h# [ /PLOPTS,LEG3,1 /PLOPTS,FRAME,1 /PLOPTS,TITLE,1 /PLOPTS,MINM,1 2 M! e1 ~% J4 l! F' Z& N8 L /PLOPTS,FILE,0 % h4 p' s( _) w# p6 x( z1 {+ k /PLOPTS,LOGO,1 * [9 M7 W/ r1 D$ E6 G /PLOPTS,WINS,1 2 C2 j {. Y" a" _ /PLOPTS,WP,0; m: o& ]5 f3 x /PLOPTS,DATE,2 /TRIAD,OFF /REPLOT !* WPSTYLE,,,,,,,,14 m% Q0 ]3 U$ M! T$ C /PREP7 5 p% m( w9 c7 I0 ~/ Z( D; | K,1,0,0,0, K,2,2,0,0, " j! C4 t2 \" n& Y6 J1 D- | K,3,1,1,0, 9 e$ O1 u t @- B: @0 X6 c; ? K,3,1,1,0, 2 k" Q$ w2 q; Z! C WPSTYLE,,,,,,,,0 /PNUM,KP,1 % j) w- }" F$ h% G$ K& ]: N( b /PNUM,LINE,12 a9 M- B1 W- A" H9 M /PNUM,AREA,0 /PNUM,VOLU,0' x6 T9 e4 J2 d /PNUM,NODE,0 h. U5 h# | f9 s* E8 v /PNUM,TABN,0 /PNUM,SVAL,0( j2 H+ \1 o; Z# J2 ] /NUMBER,0 8 _! i `0 C: ~$ d !* " S3 F% K7 @! d9 @9 C% c$ t; }9 W /PNUM,ELEM,0 /REPLOT !* LSTR, 1, 3 % r" Z2 X" J7 K% C k, ~ LSTR, 3, 2 0 V+ C. g/ |1 E# ?' b* Q. w LSTR, 2, 1 5 l. L% t' |; [1 ~7 Q GPLOT : R' V" y$ {$ E) l! c. y ALLSEL,ALL r$ k; r$ G" ^6 U. Y4 [ /REPLOT GPLOT 1 o: @: E' j# n /PNUM,KP,1 " n7 L$ p- B/ I: I+ o /PNUM,LINE,1 /PNUM,AREA,0 /PNUM,VOLU,0; L" O! ?& R" v7 y9 M4 E4 y /PNUM,NODE,0( i0 f8 n1 P/ Z: H6 Q7 M /PNUM,TABN,0, A. Z* e, A1 L, k /PNUM,SVAL,0! w' l& u( H& X /NUMBER,0 !* , Z" w$ v0 [! D8 r ] /PNUM,ELEM,0# h3 L+ y" D7 X! x- }( F( V8 d /REPLOT 9 K9 E* d& I+ l# q" M* o; R !* ALLSEL,ALL LPLOT 7 c* Y' [- f6 g a/ ?7 n GPLOT . r" h& `0 @' y, ` 這是后面自動生成的文件，我自己不是用命令畫的，我還是初學者哦 |
| 在plot里面用multiplot試一試 |
